Offline Diagrams
Graphviz, erd, Vega, Vega-Lite, WaveDrom, nomnoml and BPMN code blocks drawn on your computer: no server, no network.
Permissions
No permissions. It cannot use the network, the clipboard or your files, and only sees what Typora hands it.
Sandboxed pages. Ships HTML views that run in a sandboxed frame and only see what Typora sends them.
What it adds
- Code block renderers
```graphviz,```dot```erd```vega```vegalite,```vega-lite```wavedrom```nomnoml```bpmn- Snippets
- ER Diagram, Graphviz, Vega-Lite Chart, WaveDrom, nomnoml
Readme
Offline Diagrams

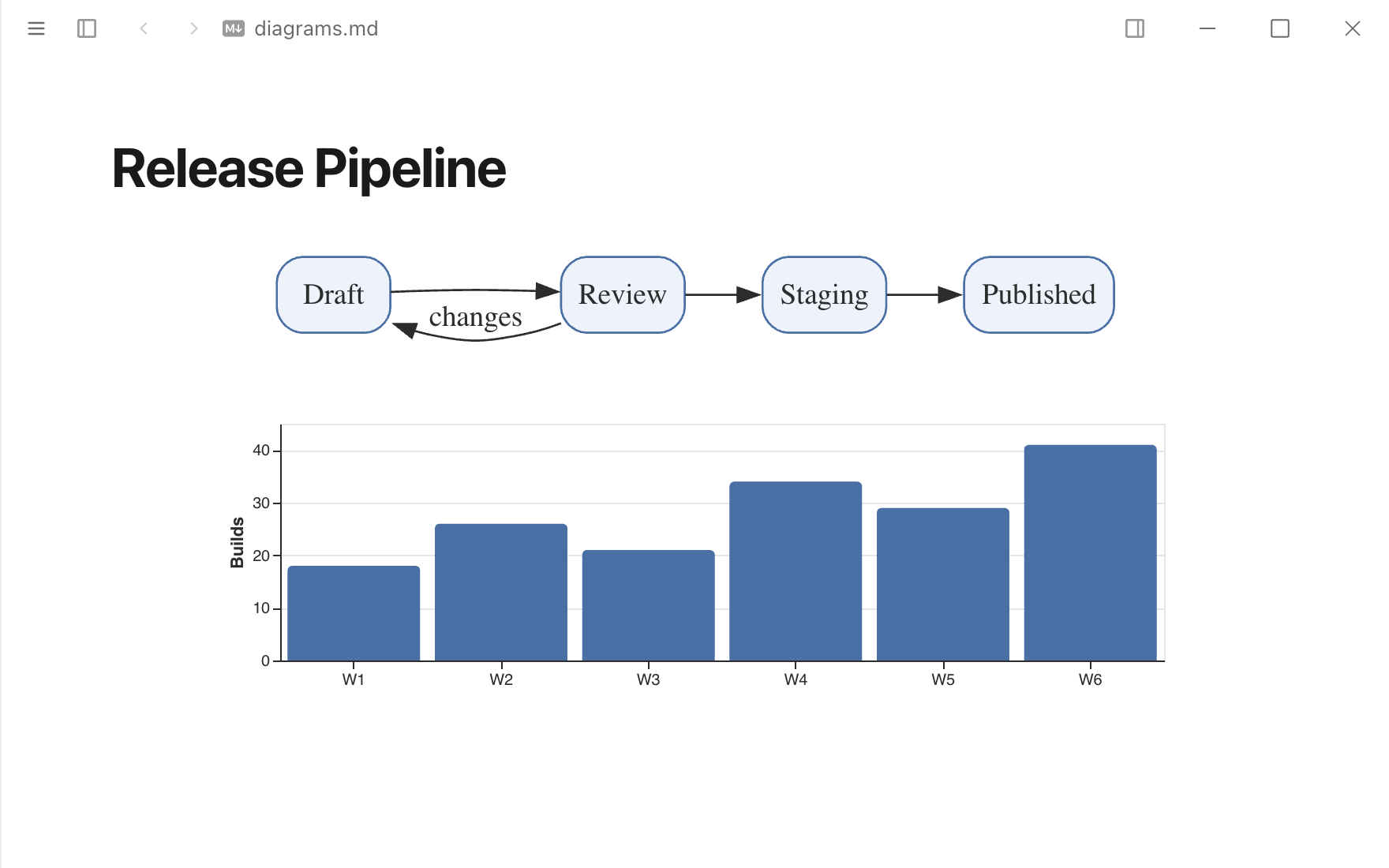

Draws these code blocks on your computer, with libraries that ship in the extension. Nothing is sent anywhere, and it needs no permissions.
| Fence | Draws |
|---|---|
```graphviz, ```dot | Graphviz DOT graphs |
```erd | Entity-relationship diagrams in erd's syntax, laid out by Graphviz |
```vega-lite, ```vegalite | Vega-Lite charts (JSON) |
```vega | Vega visualizations (JSON) |
```wavedrom | WaveDrom timing diagrams (WaveJSON) |
```nomnoml | nomnoml UML diagrams |
```bpmn | BPMN 2.0 process diagrams (XML with diagram layout) |
Diagrams follow the light or dark appearance unless the source sets its own colors. Each library loads the first time one of its diagrams is drawn.
Vega and Vega-Lite charts take their data from "values" in the spec: Typora does not let the extension load data from files or URLs.
Third-party code
vendor/ holds these libraries unchanged from npm, each with its license:
| File | Package | License |
|---|---|---|
graphviz.js | @hpcc-js/wasm-graphviz 1.29.2 (dist/index.js), Graphviz compiled to WebAssembly | Apache-2.0 (LICENSE-hpcc-js-wasm-graphviz.txt) |
vega.min.js | vega 6.4.0 (build/vega.min.js) | BSD-3-Clause (LICENSE-vega.txt) |
vega-lite.min.js | vega-lite 6.5.0 (build/vega-lite.min.js) | BSD-3-Clause (LICENSE-vega-lite.txt) |
wavedrom.unpkg.min.js, wavedrom-dark.js | wavedrom 3.7.0 (wavedrom.unpkg.min.js, skins/dark.js) | MIT (LICENSE-wavedrom.txt) |
nomnoml.js, graphre.js | nomnoml 1.7.0 and graphre 0.1.3 (dist/) | MIT (LICENSE-nomnoml.txt, LICENSE-graphre.txt) |
bpmn-viewer.production.min.js | bpmn-js 18.31.0 (dist/) | bpmn.io license (LICENSE-bpmn-js.txt) |
vega-interpreter.js is vega-interpreter 2.3.2 with vega-util 2.1.3 bundled into one readable script by esbuild (esbuild vega-interpreter.entry.js --bundle --format=iife --global-name=vegaInterpreter). Typora's extension pages forbid generated code, so Vega evaluates expressions with the interpreter instead.
bpmn-js asks that its bpmn.io mark stays visible on rendered diagrams; the exported drawing doesn't include the viewer's overlay, so the extension adds a small "Powered by bpmn.io" line under each BPMN diagram.
